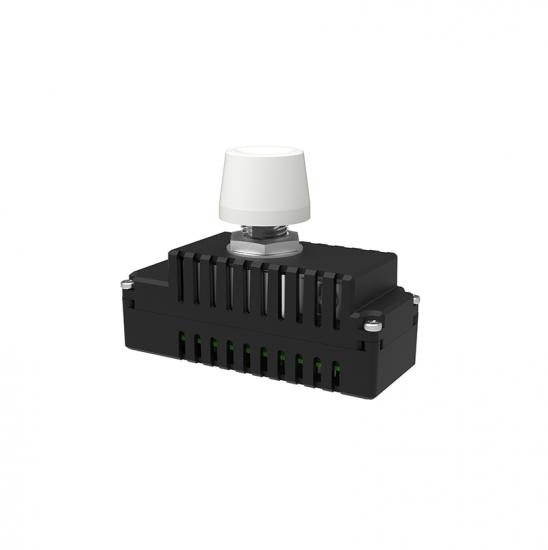

LED Dimmer Switch Universal 300W

UK LED dimmer switch, universal dimming control, multi-way connection. Maximum 300W.

LED Dimmer Switch Universal 300W Features:

1. Best compatibility, compatible with more than 95% of LED lights and 100% of incandescent & halogen.

2. Overheating protection, automatic overload protection and short-circuit protection.

3. Without neutral wiring, 2 wires.

4. CE approval by Intertek.

5. Dimmer type: universal (leading edge or trailing edge changed automatically).

6. Control type: push on and push off, rotary to dim and brighten.

7. Minium brightness adjustable.

8. Multi-way connection available.

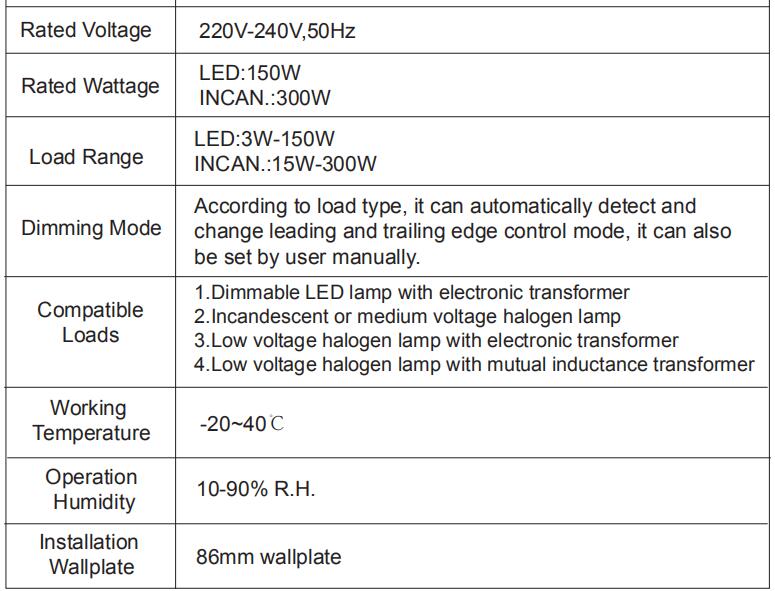

Technical Data:

Wiring Diagram:

1-way wiring diagram:

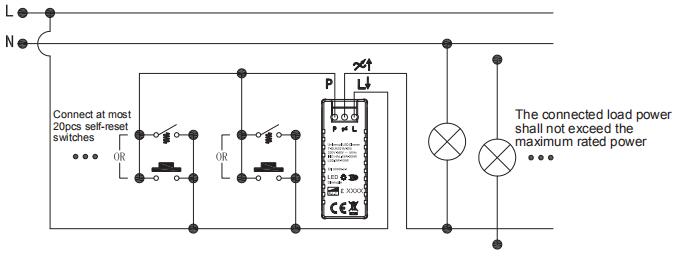

Multi-way wiring diagram:

Maximum 20pcs of switches control 1 dimmer.

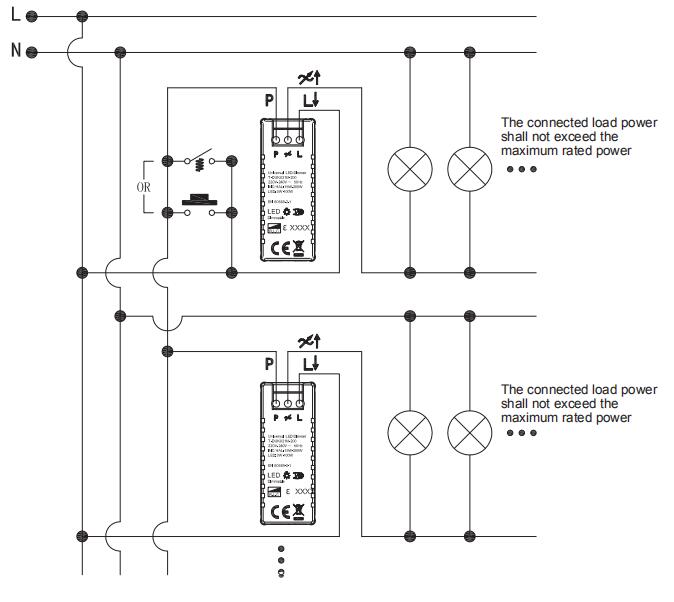

1 switch control several dimmers:
